Restore dependable headlight operation with this premium Light Switch Body (A-11655/67) for the 1928-1931 Ford Model A.
Mounted beneath the steering column, this light switch body accepts the Model A light switch wiring harness and controls the vehicle's lighting functions. Unlike many imported reproductions, this American-made unit has been manufactured using original Ford archive blueprints, providing superior fit, finish and reliability.
The switch features quality brass electrical contacts for long service life and a CAD-plated housing to closely replicate the original appearance while offering excellent corrosion resistance.
During development, Snyder's found that many reproduction light switch wiring harness contact rings differ slightly from original Ford specifications. If your switch is difficult to rotate from the OFF position, the reproduction contact ring may have oversized detents. Carefully tapering the edge of the detent with a sharp knife or small rotary burr can significantly improve switch operation while retaining the flat contact surface.
Some reproduction contact rings are also manufactured thicker than original Ford specifications. Adding a slight taper to the outer edge of the plastic contact ring allows the lower switch cap to engage and rotate into position more easily.

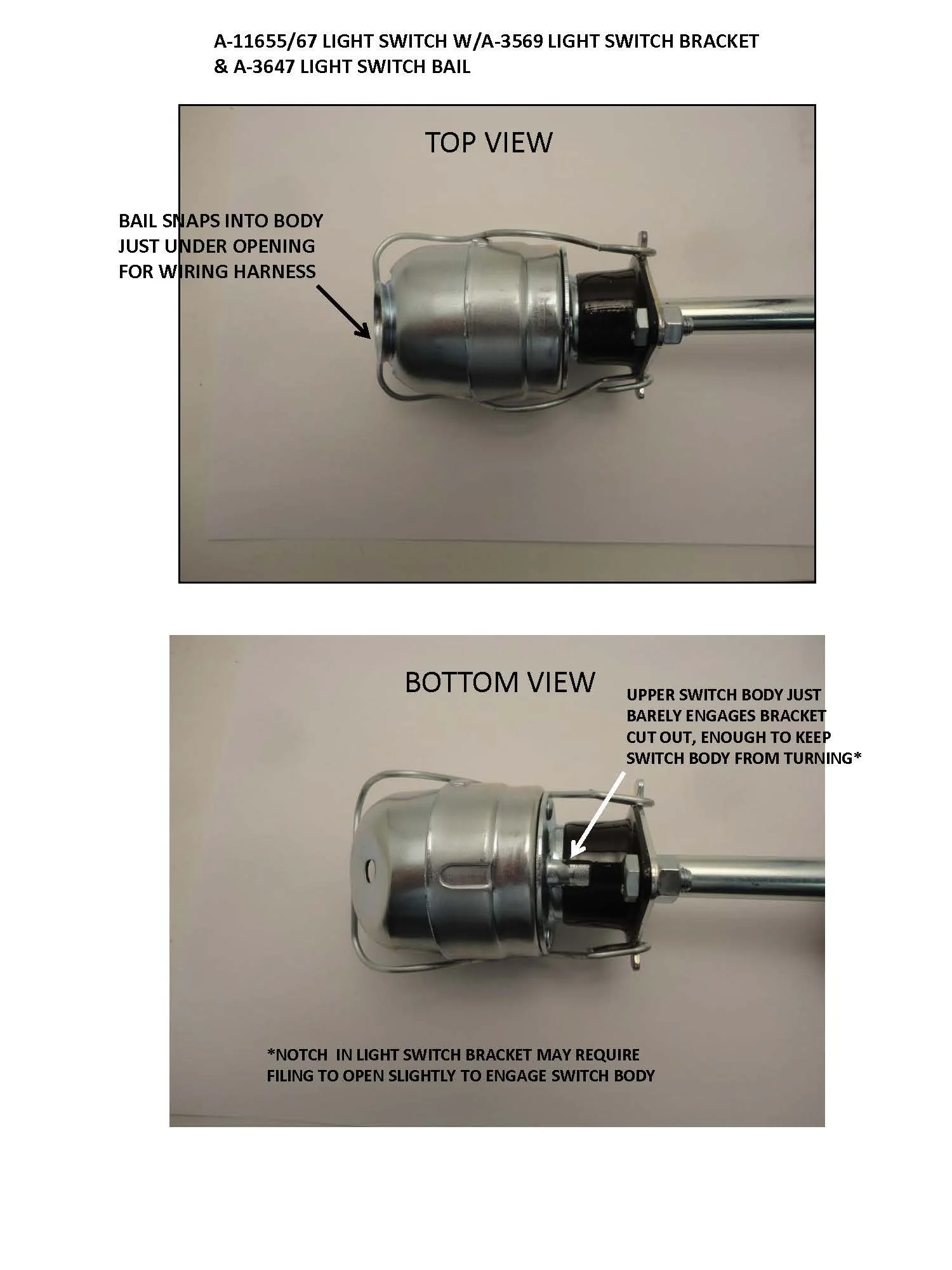

When installing the switch body, ensure the retaining bail snaps into the body just beneath the wiring harness opening. The upper switch body should only lightly engage the bracket cut-out to prevent the switch rotating. In some cases, the bracket notch may require minor filing to achieve proper engagement.
Yesteryear Garage & Parts proudly supplies genuine Snyder's Antique Auto Parts throughout Australia.
Premium American-made reproduction
Manufactured from original Ford archive blueprints
Correct brass electrical contacts
CAD-plated housing for corrosion resistance
Correct fit for steering column installation
Suitable for original wiring harnesses
Reliable headlight switch operation
Superior quality compared with many imported reproductions
Authentic appearance for restorations
Long-lasting brass electrical contacts
Correct fit using original Ford specifications
Ford Model A (1928-1931)
Original steering column light switches
Restoration projects
Electrical system repairs
Part Number: A-11655/67
Vehicle Compatibility: Ford Model A (1928-1931)
Mounting Location: Bottom of steering column
Construction: Brass contacts with CAD-plated housing
Country of Manufacture: USA
